Wheel Studs

Wheel studs are the critical fasteners that anchor your wheels to the hub — and the difference between OEM-spec replacements and purpose-built performance studs comes down to tensile strength, thread engagement, and material grade under real cornering and braking loads. Motor Sport Mayhem carries 55 in-stock wheel stud options spanning entry-level replacements to competition-grade hardware, from trusted brands like ARP, McGard, BLOX Racing, and more, priced from $1.99 to $1,137.31.

Our Top Picks for Wheel Studs

Each of these products was hand-selected based on engineering quality, real-world performance credibility, and value across street, track, and off-road applications.

How to Choose the Right Wheel Studs

Wheel studs fail in one of two ways: they shear under lateral load or they fatigue and stretch under cyclic clamping forces — and the root cause in both cases is almost always inadequate tensile strength, incorrect thread engagement depth, or improper installation torque. The specification that separates a $5 OEM replacement from a $85 performance stud isn't brand prestige — it's material grade, manufacturing process, and proof load rating. Chromoly alloy steel treated to 170,000–190,000 psi tensile strength is the baseline for any performance application; standard carbon steel OEM studs typically rate 90,000–120,000 psi and have no margin for the additional stresses of track driving, heavy towing, or lifted off-road builds. Titanium studs push strength-to-weight ratios further and resist corrosion in harsh environments, but the cost premium is justified only where unsprung weight reduction is a genuine engineering priority.

Key Specifications

Thread pitch and diameter are your first fitment constraints — these are non-negotiable and must match the hub exactly. Common metric thread specifications include M12x1.25 and M12x1.5, while imperial applications typically use 1/2"-20 UNF. Fine-pitch threads (lower number) provide greater clamping force for a given torque value and are standard on most performance and European applications; coarser pitches are more common on trucks and off-road vehicles where ease of field replacement under contaminated conditions matters more than peak clamp load.

Stud length is the second critical variable and is frequently misspecified when upgrading to aftermarket wheels. The rule of thumb is a minimum of one full diameter of thread engagement into the hub, plus enough exposed thread to pass fully through the wheel hat section and engage the lug nut by at least six to eight full threads. Running a stud that's too short with an aftermarket wheel leaves you with dangerously shallow nut engagement; too long and the stud bottoms out in a conical or ball-seat lug nut before proper clamp load is achieved. Extended studs paired with correct-length lug nuts solve this — but you need to measure your specific wheel hat thickness before ordering.

The installation method matters as much as the stud spec itself. Press-in studs require proper hub support during installation to avoid bearing damage — a slide hammer or stud installation tool, not a lug nut and washer stack that loads the bearing. Drive-in studs with knurled shanks require the knurl to fully seat into the hub bore for correct retention; under-driven studs spin under torque load and are a common cause of catastrophic wheel separation. Always torque lug nuts in a star pattern to the manufacturer's specification after installation, and re-torque after the first 50 miles of driving on any new stud installation.

For suspension modifications like coilovers or lowering springs that change wheel offset or introduce additional cornering loads, upgrading studs simultaneously is a sound practice — the combined system stress increases and OEM studs are calibrated for stock geometry loads. Similarly, any build running significantly upgraded brakes with larger rotors and higher clamping calipers generates increased thermal cycles through the hub assembly, which accelerates fatigue in marginal stud material.

Wheel Stud Specification Reference: Thread Pitch, Tensile Strength & Application Guide

Price Guide

Entry ($1.99–$50): This range covers direct OEM-replacement studs in standard carbon steel, individual replacement units, and basic powersports wheel hardware. Material grades are adequate for stock-power daily driving and low-stress applications, but tensile ratings rarely exceed 120,000 psi and there is no margin for performance use. Correct choice for restoring a street car to factory spec.

Mid-range ($50–$300): The performance sweet spot where most enthusiasts land — chromoly and alloy steel studs with heat treatment to 170,000–190,000 psi, proper extended-length options for aftermarket wheels, and kit formats that cover a full axle or full vehicle. Quality control is meaningfully better than budget replacements, and brands in this tier typically publish actual tensile and proof load data. Correct choice for street performance, autocross, and occasional track day use.

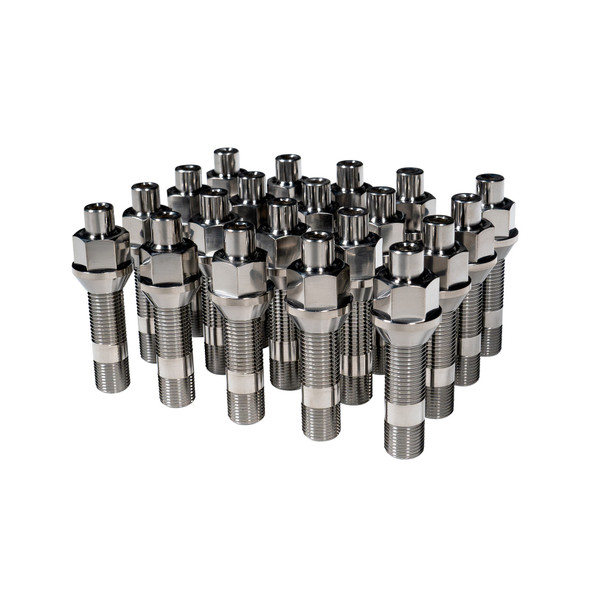

Premium ($300–$1,137.31): Titanium construction, competition-spec kits with precision-ground shanks, and complete wheel fastener systems including matching hardware. The upper end of this range includes tire carrier systems and fabricated mounting solutions for expedition and overland builds where the stud and carrier assembly together constitute a safety-critical system. Justified for dedicated track builds, serious overland rigs, and any application where weight, corrosion resistance, or sustained extreme loads are genuine engineering requirements.

Who Is This For?

Wheel studs serve every segment from weekend off-roaders and daily commuters to full competition builds — and the usage data across 55 in-stock products confirms this category earns high scores across nearly every performance application.

Weekend Off-Roading — 7.5/10

Off-road use scores highest in the usage matrix at 7.5/10 across 56 products, and it makes sense — trail driving generates constant lateral shock loads through the hub assembly that expose marginal stud material faster than almost any other application. Mud, water, and temperature cycling also accelerate corrosion on bare steel studs, making material grade and finish a real functional concern, not just aesthetic. Builds running lifted suspension and larger tires add unsprung weight that multiplies dynamic hub loads further, pushing the requirement firmly toward performance-spec studs.

Street Performance — 7.4/10

Street performance scores 7.4/10 across 182 products — the largest single product population in the matrix — reflecting how broad the upgrade demand is for enthusiasts running modified street cars. Aftermarket wheels with thicker hat sections, wider track setups, and higher-output builds all create conditions where OEM studs become the weakest link in the wheel retention system. Upgrading to chromoly studs with correct extended length is one of the highest-value, lowest-cost safety and performance modifications available to a street-driven enthusiast build.

Track / Autocross — 7.3/10

Track and autocross use scores 7.3/10 across 158 products, tied with racing competition, reflecting that even non-professional circuit driving exposes wheel fasteners to sustained lateral G-loads and repeated thermal cycling that OEM hardware is not designed to survive long-term. Most sanctioning bodies and track day organizers require or strongly recommend upgraded wheel studs, particularly on cars running wide tires and aggressive alignment settings. The combination of high cornering loads, repeated braking zones, and temperature swings from cold ambient to hot braking makes this the environment where stud quality is most directly linked to safety.

Racing Competition — 7.3/10

Competition use scores 7.3/10 across 146 products, and at this level stud specification becomes a technical document requirement in many classes rather than a choice. Competition builds demand fully traceable material certifications, precise thread tolerances, and proof load data — all characteristics that define the premium tier of this category. Quick-change wheel systems used in endurance and sprint racing also place unique demands on stud geometry, requiring extended length and specific knurl profiles for reliable repeated wheel changes under pit stop conditions.

Overlanding / Expedition — 7.3/10

Overlanding scores 7.3/10 across 56 products, matching racing competition despite being a very different application — which speaks to how demanding sustained remote travel actually is on wheel retention hardware. Multi-day expeditions on corrugated and rutted surfaces generate continuous micro-shock loading that slowly fatigues stud material and loosens clamping force, making both stud quality and torque maintenance discipline critical. Tire carrier systems that mount to the rear hub assembly introduce additional static and dynamic loads that must be accounted for in the stud specification for the affected corner.

Trusted Wheel Studs Brands We Carry

The brands that dominate this category earn their position through documented engineering standards, not just marketing — and the difference in quality is measurable at the material level. ARP built its reputation supplying the NASCAR and IndyCar paddocks with fasteners that must survive conditions no street car will ever see, and their published tensile and proof load data is the industry benchmark by which other manufacturers are judged. McGard approaches the category from an OEM-supplier perspective, holding ISO 9001 certification and supplying direct to vehicle manufacturers — which means their dimensional tolerances and thread quality match or exceed factory spec. BLOX Racing and Project Kics address the sport compact and import performance market with extended-length and titanium options engineered for aftermarket wheel fitment, where standard-length OEM studs routinely leave insufficient thread engagement. BBS, with an average product price of $272 in our catalog, represents the premium European tier where hub-centric precision and material grade are specified to match the quality of the wheels themselves. For powersports and off-road applications, All Balls Racing and QuadBoss provide vehicle-specific kits engineered to the tighter axle tolerances and harsher environmental exposure of dirt and trail use.

Frequently Asked Questions

Are ARP wheel studs actually stronger than OEM studs?

Yes — measurably and significantly. ARP's wheel studs are manufactured from 8740 chromoly steel and heat-treated to approximately 190,000 psi tensile strength, compared to 90,000–120,000 psi for typical OEM carbon steel studs. The other critical difference is manufacturing process: ARP rolls their threads after heat treatment, which creates compressive stress in the thread roots and dramatically improves fatigue life under cyclic loading. For any application beyond conservative street driving — track days, autocross, towing, or lifted off-road builds — the strength margin of a performance stud like ARP's is not theoretical, it's the difference between a fastener that survives sustained abuse and one that fatigues over time.

Are aftermarket lug nuts safe to use?

Aftermarket lug nuts are safe when correctly specified — the two variables that matter most are seat type and material grade. Lug nuts come in conical (60-degree taper), ball (radius), and flat seat configurations, and the seat geometry must match the wheel exactly; a mismatched seat concentrates load on a small contact area and can cause the nut to loosen or the wheel seat to crack under torque. Material grade matters for the same reason it matters in studs — chrome-plated steel nuts from reputable manufacturers like McGard or Project Kics meet or exceed OEM strength requirements, while cheap zinc-die-cast nuts sold in bulk can strip under correct torque values. Extended or spline-drive nuts from brands with published proof load ratings are entirely safe and frequently superior to OEM hardware for performance applications.

Are aluminum valve stem caps better than rubber ones?

For performance and longevity, yes — metal valve caps seal more consistently and resist the UV degradation and heat-induced brittleness that causes rubber caps to crack and fail over time. The more important consideration, however, is using metal caps only on metal valve stems; pairing an aluminum cap with an aluminum stem creates a galvanic corrosion risk that can seize the cap permanently onto the stem, making future pressure checks and inflation impossible without destroying the valve. On powersports and off-road applications specifically, metal caps with an integrated rubber seal ring provide the best combination of durability and reliable sealing under vibration and contamination exposure.

Are wheel spacers from mass-market retailers safe?

The safety of any wheel spacer is determined by engineering specification, not the retailer selling it — but budget spacers sold without hub-centric bore dimensions, material certifications, or included extended hardware are a genuine risk regardless of where they are purchased. A spacer that is not hub-centric forces the lug nuts alone to center the wheel, introducing runout and vibration and placing shear stress on the studs that they are not designed to carry. Safe spacers are machined from 6061-T6 or 7075-T6 billet aluminum to match the specific hub bore of the vehicle, are sold with extended studs or bolts that maintain correct thread engagement after the spacer thickness is added, and are torqued and re-torqued following the same protocol as a wheel installation.

Are BBS wheels considered high-end?

BBS is broadly recognized as one of the premier wheel manufacturers in the industry, with a motorsport heritage that includes Formula 1, Le Mans, and World Rally Championship applications where wheel integrity is an absolute engineering requirement. Their forged wheel construction — particularly the flow-formed and fully forged lines — delivers strength-to-weight ratios that cast wheels cannot match, and their dimensional precision is what allows BBS to offer matched spacer and bolt kits with the hub-centric accuracy required for European luxury and performance platforms. The premium price point of BBS products in our catalog reflects genuine engineering investment, not brand premium alone, and their OEM supply relationships with major European manufacturers validate that the specifications meet the most demanding real-world standards. For builds pairing premium wheels with performance hardware throughout the wheel assembly, matching the fastener quality to the wheel quality is the correct engineering approach.

Building something specific? Our performance specialists can help you select the right Wheel Studs for your application — street, track, or full race build.
