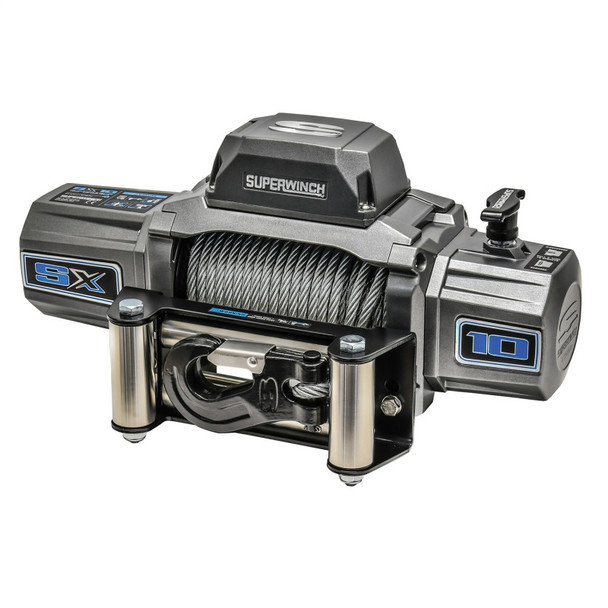

Superwinch 10000 LBS 12V DC 3/8in x 85ft Wire Rope SX 10000 Winch - 1710200

The SX10 is engineered to provide users the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. SX Series winches exceed the most demanding standards of today's modern vehicles, while delivering an affordable and stylish design which incorporates many class leading features not found in other high-performance winches. Available in 10,000 lbs. of raw pulling power, the new SX series has an IP68 rating for dustproof and waterproof operation while the sleek modern look is finished with a durable metallic graphite powder-coat that is built to last. Combined with innovative features such as a patented drum light, relocatable control box and a lighted remote, and steel winch rope, this winch has it all.
Installation Instructions
Technical Drawing
Installation Instructions

• 12' wired remote with integrated lithium-ION rechargeable LED flashlight
• 100% Full Load Holding Automatic Mechanical Brake
• Durable Metallic Graphite Powder Coat Finish
• 3-stage planetary gearing with 218:1 ratio
• IP68-Rated Waterproof And Dustproof Winch
• Relocatable die-cast aluminum control box
• 3-Stage Planetary Gearing w/218:1 Ratio
• Ergonomic pull-and turn clutch handle
• Mechanical Warranty Limited Lifetime
• IP68-rated waterproof and dustproof
• Electrical Warranty Limited 7 Year
• Stainless steel roller fairlead
• Heavy duty clevis winch hook
• Rated Line Pull Of 10000 Lbs
• Drum diameter measures 2.5"
• Pull-And Turn Clutch Handle
• 10,000 lbs. capacity
• 85' - 3/8" wire rope
• 5.5 HP Sealed Motor
• Patented drum light
• Clockable gear box
