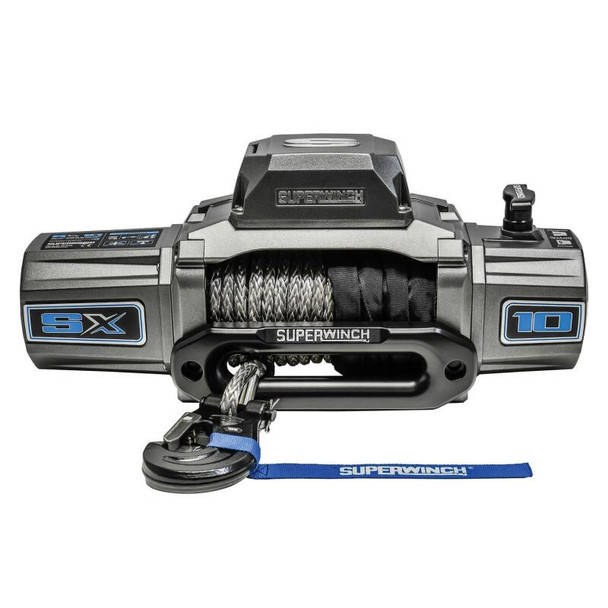

Superwinch 10000 LBS 12V DC 3/8in x 80ft Synthetic Rope SX 10000 Winch - 1710201

The SX10SR is engineered to provide users the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8 in. diameter synthetic rope, a 12' lighted wired remote, and wireless handheld remote. SX Series winches exceed the most demanding standards of today's modern vehicles, while delivering an affordable and stylish design which incorporates many class leading features not found in other high-performance winches. Providing 10,000 lbs. of raw pulling power, the new SX10SR synthetic rope model has a sleek modern look and is built to last. With an IP68 rating for dustproof and waterproof operation, and a durable metallic graphite powder-coated finish this winch has it all.
Technical Drawing
Installation Instructions

• Includes wireless remote & 12' wired remote with integrated lithium-ION rechargeable LED flashlight
• 100% full load holding automatic mechanical brake
• Durable Metallic Graphite Powder Coat Finish
• 3-stage planetary gearing with 218:1 ratio
• Relocatable die-cast aluminum control box
• IP68-Rated Waterproof And Dustproof Winch
• 3-Stage Planetary Gearing w/218:1 Ratio
• Ergonomic pull-and turn clutch handle
• Mechanical Warranty Limited Lifetime
• 80' - 3/8" UV coated synthetic rope
• IP68-rated waterproof and dustproof
• Electrical Warranty Limited 7 Year
• Rated Line Pull Of 10000 Lbs
• Heavy duty clevis winch hook
• Drum diameter measures 2.5"
• Pull-And Turn Clutch Handle
• Aluminum hawse fairlead
• 10,000 lbs. capacity
• Patented drum light
• 5.5 HP Sealed Motor
• Clockable gear box
