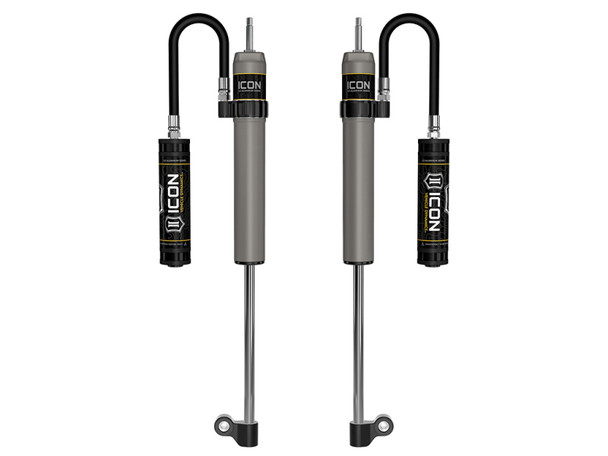

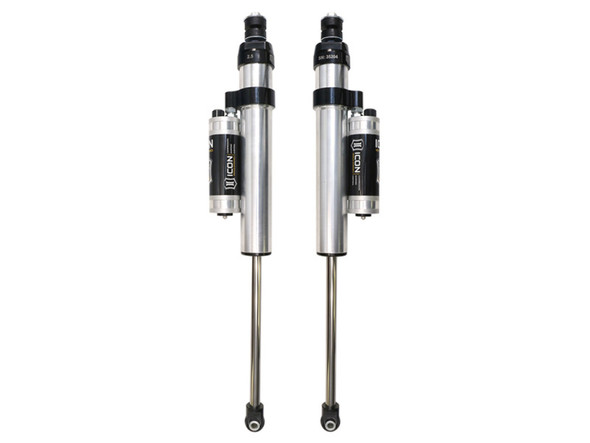

ICON 2007+ Toyota Tundra RXT Rear 2.5 Series Shocks VS RR - Pair - 57823P

ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aliminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) or Omega Series bypass shocks.
Installation Instructions
Installation Instructions

• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaftS
• Nitrogen charged monotube design with remote reservoir
• 6061 aircraft grade aluminum CNC machined components
• Double-sealed Schrader caps reduce risk of damage
• 100% Revalveable
• 100% Rebuildable

This Part Fits:

Year	Make	Model	Submodel
2014-2021	Toyota	Tundra	1794 Edition
2007-2013	Toyota	Tundra	Base
2007-2021	Toyota	Tundra	Limited
2021	Toyota	Tundra	Nightshade
2010-2021	Toyota	Tundra	Platinum
2014-2021	Toyota	Tundra	SR
2007-2011,2014-2021	Toyota	Tundra	SR5
2021	Toyota	Tundra	Trail
2015-2017,2019-2021	Toyota	Tundra	TRD Pro
