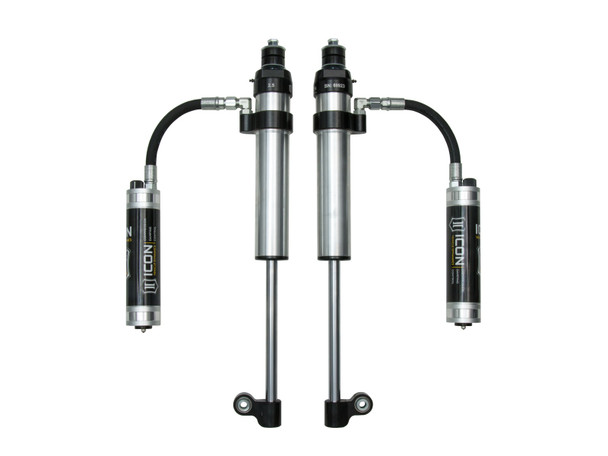

ICON 2005+ Toyota Tacoma RXT Rear 2.5 Series Shocks RR CDCV - Pair - 57826CP

ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. With a truly vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune. Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON shock absorbers, these 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom-out conditions and controls the suspension effectively when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.
Installation Instructions
Installation Instructions

• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with remote reservoir
• 6061 aircraft grade aluminum CNC machined components
• Double-sealed Schrader caps reduce risk of damage
• 100% Rebuildable
• 100% Revalveable

This Part Fits:

Year	Make	Model	Submodel
2005-2015	Toyota	Tacoma	Base
2016-2023	Toyota	Tacoma	Limited
2005-2015	Toyota	Tacoma	Pre Runner
2016-2023	Toyota	Tacoma	SR
2016-2023	Toyota	Tacoma	SR5
2021	Toyota	Tacoma	Trail
2023	Toyota	Tacoma	Trail Special Edition
2016-2023	Toyota	Tacoma	TRD Off-Road
2015,2017-2023	Toyota	Tacoma	TRD Pro
2016-2023	Toyota	Tacoma	TRD Sport
2005-2013	Toyota	Tacoma	X-Runner
