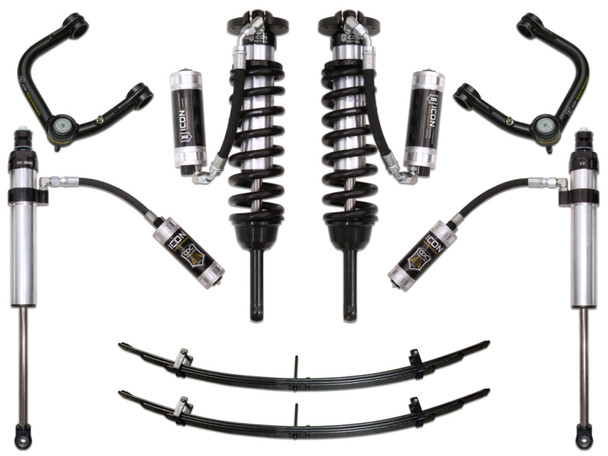

ICON 05-15 Toyota Tacoma 0-3.5in/2016+ Toyota Tacoma 0-2.75in Stg 6 Suspension System w/Tubular Uca - K53006T

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 6 system includes vehicle-specific tuned 2.5” Extended Travel coilover shocks featuring remote reservoirs equipped with CDCV for exceptional cooling properties and adjustable compression damping as well as ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” of lift on 2005-2015 or 0-2.75” on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. The included ICON tubular upper control arm kit is designed to improve the overall performance of the Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the serviceable ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10% for a more compliant ride while also providing 1.5" of rear lift over stock. ICON 2.5 Aluminum Series Remote Reservoir rear shocks with CDCV utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 6 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions

• 2.5 Series front coilovers with remote reservoirs for improved shock cooling and consistent performance under hard use
• Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Add-A-Leaf Kit replaces OE overload leaf spring for more compliant ride quality and 1.5" of rear lift
• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts offer increased shock damping
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint
• Extended Travel coilovers offer maximum wheel travel
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock

This Part Fits:

Year	Make	Model	Submodel
2005-2015	Toyota	Tacoma	Base
2016-2023	Toyota	Tacoma	Limited
2005-2015	Toyota	Tacoma	Pre Runner
2016-2023	Toyota	Tacoma	SR
2016-2023	Toyota	Tacoma	SR5
2021	Toyota	Tacoma	Trail
2023	Toyota	Tacoma	Trail Special Edition
2016-2023	Toyota	Tacoma	TRD Off-Road
2015,2017-2023	Toyota	Tacoma	TRD Pro
2016-2023	Toyota	Tacoma	TRD Sport
2005-2013	Toyota	Tacoma	X-Runner
