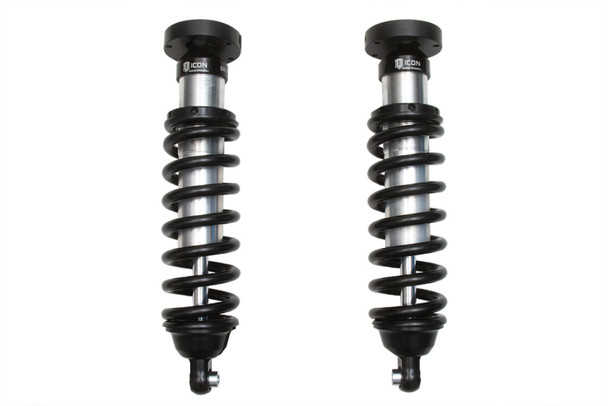

ICON 00-06 Toyota Tundra Ext Travel 2.5 Series Shocks VS IR Coilover Kit w/700lb Spring Rate - 58625-700

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2000-2006 Toyota Tundra and 2001-2007 Toyota Sequoia. These adjustable coilovers allow up 0-2.5” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, yield increased front wheel travel along with superior ride quality and suspension performance both on- and off-road. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your vehicle.
Installation Instructions
Installation Instructions

• Vehicle specific shock length and pairing with aftermarket front upper control arms yields maximum wheel travel
• Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
• ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
• 2.5" diameter shock bodies with internal reservoirs for consistent performance
• Height-adjustable coilovers offer 0-2.5" of lift height adjustment over stock
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
• FK rod end bearings for extended longevity and minimal deflection
• 6061 Aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable

This Part Fits:

Year	Make	Model	Submodel
2001-2007	Toyota	Sequoia	Limited
2001-2007	Toyota	Sequoia	SR5
2000-2006	Toyota	Tundra	Base
2000-2006	Toyota	Tundra	Limited
2000-2006	Toyota	Tundra	SR5
